Description

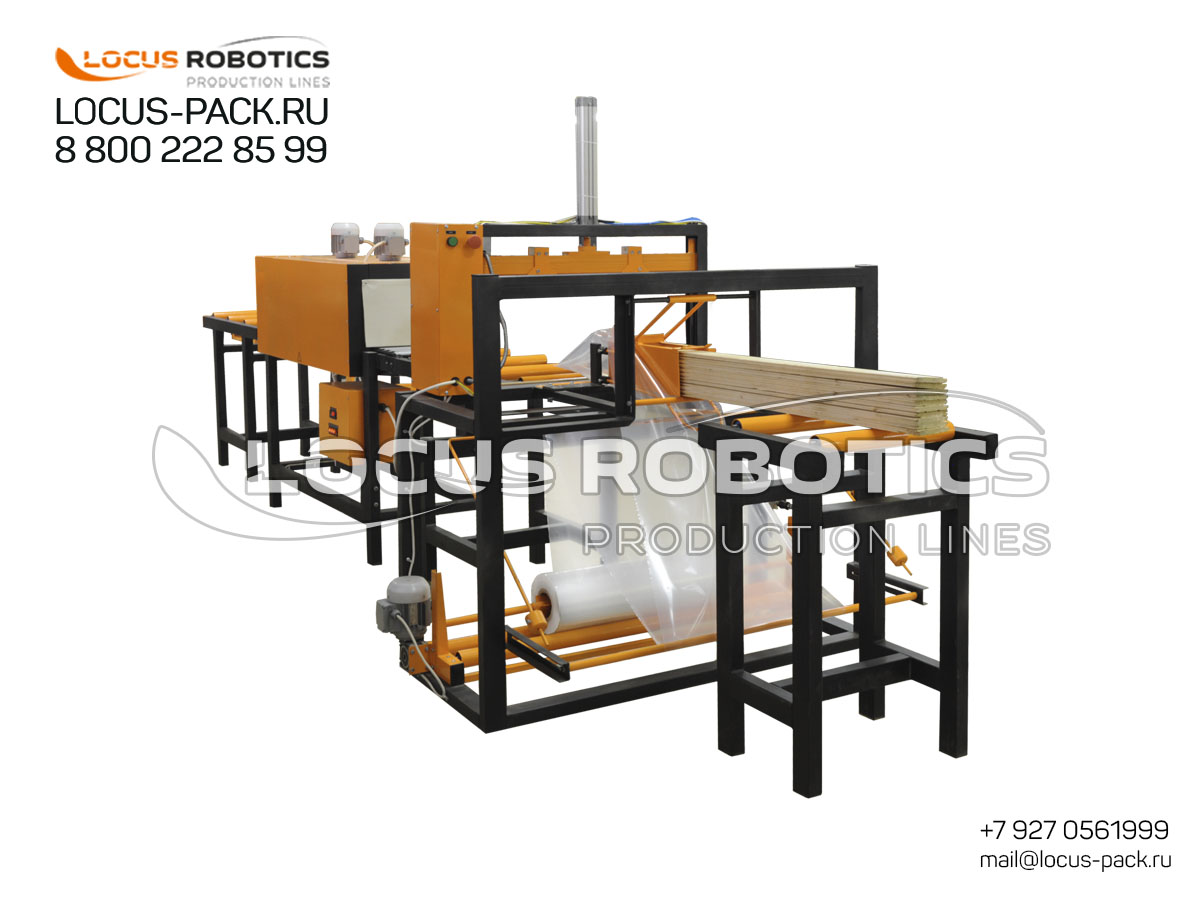

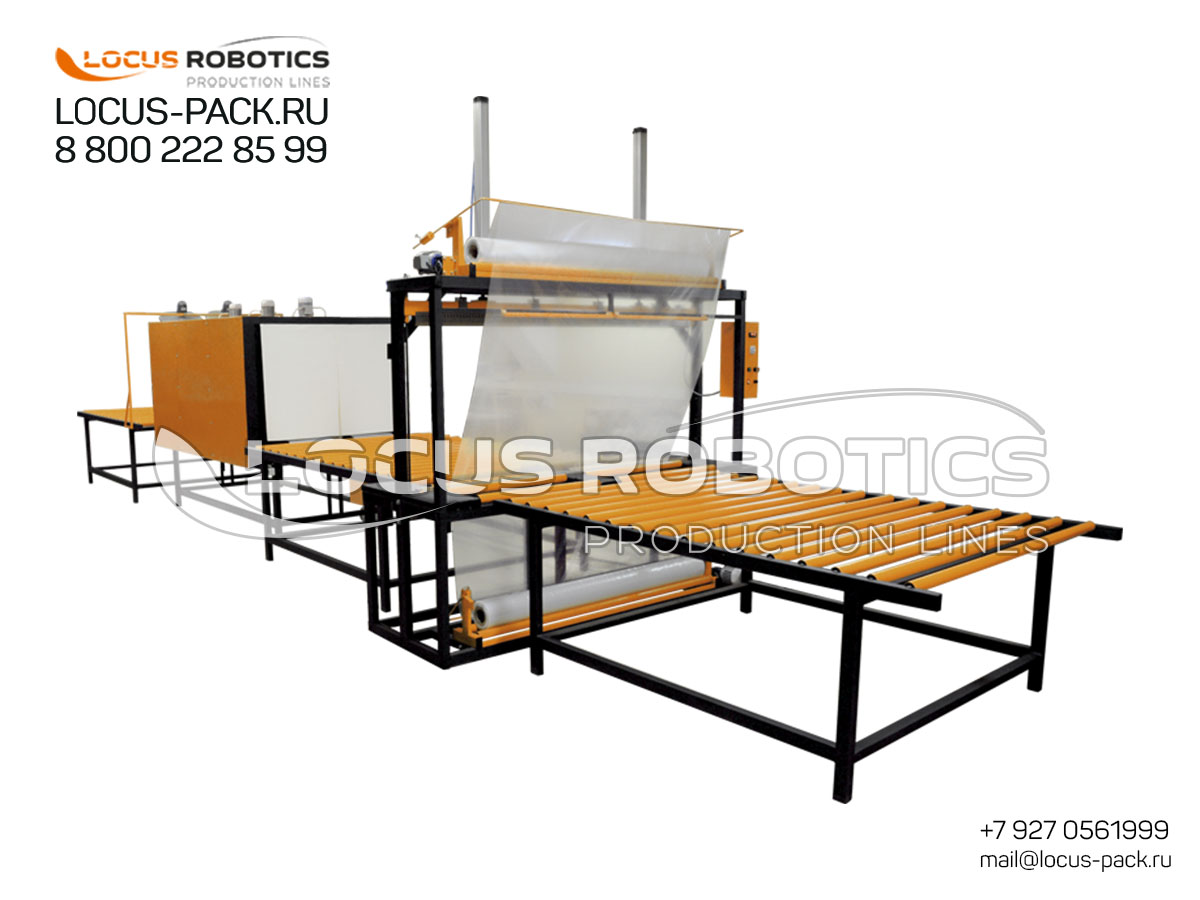

Linear Heat-Sealing System for Industrial Elongated Products
This industrial heat-sealing machine packages large or elongated items into protective transport film using precision thermal technology. Specialized for packaging long/narrow products, this system creates secure retail multipacks using precision shrink-wrapping technology:
-
Oversized Product Handling: Accommodates items up to 3m length × 1m width
-
Flexible Configurations: Bundles single items or multi-packs (2-12 units)
-
Film Compatibility: Seals PE, PP, PVC films (50-300μm thickness)
-
Elongated Product Focus: Handles tubes, bottles, syringes, aerosol cans (L:D ratio > 2:1)
-
High-Speed Formatting: Bundles 4,6,8,10,12 or 16 units at 1000+ items/hour
-
Anti-Tip Engineering: Stabilizing guides prevent toppling during conveyance
Key Technical Specs
| Parameter | Specification | Industry Advantage |
|---|---|---|
| Max. Bundle Size | 1200×800×500mm (L×W×H) | 30% larger than PDC LHS80 |
| Sealing Temperature | 100-300°C (±3°C) | Wide range for all films |
| Throughput | 20-60 bundles/hour | Adjustable to product size |
| Seal Strength | >25 N/15mm (ISO 527-3) | Pharma-grade integrity |
Specialized Features
-
Telescopic side guides for irregular shapes
-
Programmable dwell time for thick films
-
Anti-static film unwind system
Key Specifications
| Parameter | Specification | Competitive Advantage |
|---|---|---|
| Product Length | 100-500mm | 2x longer |
| Throughput | 1000+ items/hour | 20% faster |
| Min. Diameter | 15mm | Handles slim vials/tubes |
| Tilt Tolerance | <1° deviation | Critical for unstable items |
Specialized Handling Features
-
V-groove conveyors for cylindrical items
-
Magnetic guides for ferrous containers
-
Vacuum-assisted lanes for lightweight products
Industry Applications
| Sector | Product Examples | Bundle Types |
|---|---|---|
| Building Materials | Pipes, profiles, panels | Single-item weatherproofing |
| Automotive | Exhaust systems, drive shafts | 2-4 pack transport bundles |
| Furniture | Table legs, railings | Multi-pack retail sets |
| Industrial | Machinery parts, extrusions | Custom configurations |
| Agriculture | Irrigation pipes, tools | Farm supply bundles |
| Sector | Product Examples | Bundle Types |
|---|---|---|
| Pharmaceuticals | Syringes, vaccine vials | 6/12-pack medical kits |
| Cosmetics | Serum tubes, lipstick cases | Luxury 4-packs |
| Food | Soda bottles, sauce tubes | 8-pack pantry bundles |
| Chemicals | Aerosols, adhesive tubes | Industrial 6-packs |
| Agriculture | Pesticide tubes, seed vials | Farm supply 10-packs |
Competitive Advantages
-
40% wider sealing jaws (800mm vs. 500mm)
-
Handles 300μm films (competitors: 200μm max)
-
Tool-less height adjustment (saves 20 min/changeover)
-
35% faster format change (<5 mins)
-
Patented anti-tip system (0.3% damage rate)
-
Handles 500mm lengths (competitors: 400mm max)
Global Market Adaptations
| Region | Certifications | Hardware Features |
|---|---|---|
| Industrial Zones | CE, ISO 9001 | Heavy-duty steel frame |
| Tropical Climates | — | Humidity-resistant controls |
| High-Dust Areas | IP54 rating | Sealed electrical components |
| Global Export | CRN, ASME compliance | Custom voltage options |
| Region | Certifications | Hardware Features |
|---|---|---|
| EU Pharma | CE, ISO 15378 | Cleanroom-compatible (ISO 5) |
| Tropical Regions | — | Humidity-resistant film drive |
| Africa/Latin Am. | — | Voltage stabilizer (220V-320V-380V-480V) |
| Middle East | Halal Packaging Compliant | Dedicated aerosol settings |
Commercial Proof Points
+ Size Capacity: 2m length support
+ Film Versatility: 50-300μm thickness range
+ Durability: 5mm steel frame construction
+ Stability: <1° tilt = 99.4% damage-free operation
+ Flexibility: 50mm-500mm length range
+ Speed: 1000+ items/hour = 2x manual throughput
