Description

Linear-Type Monoblock for Automatic Cartridge Filling and Capping

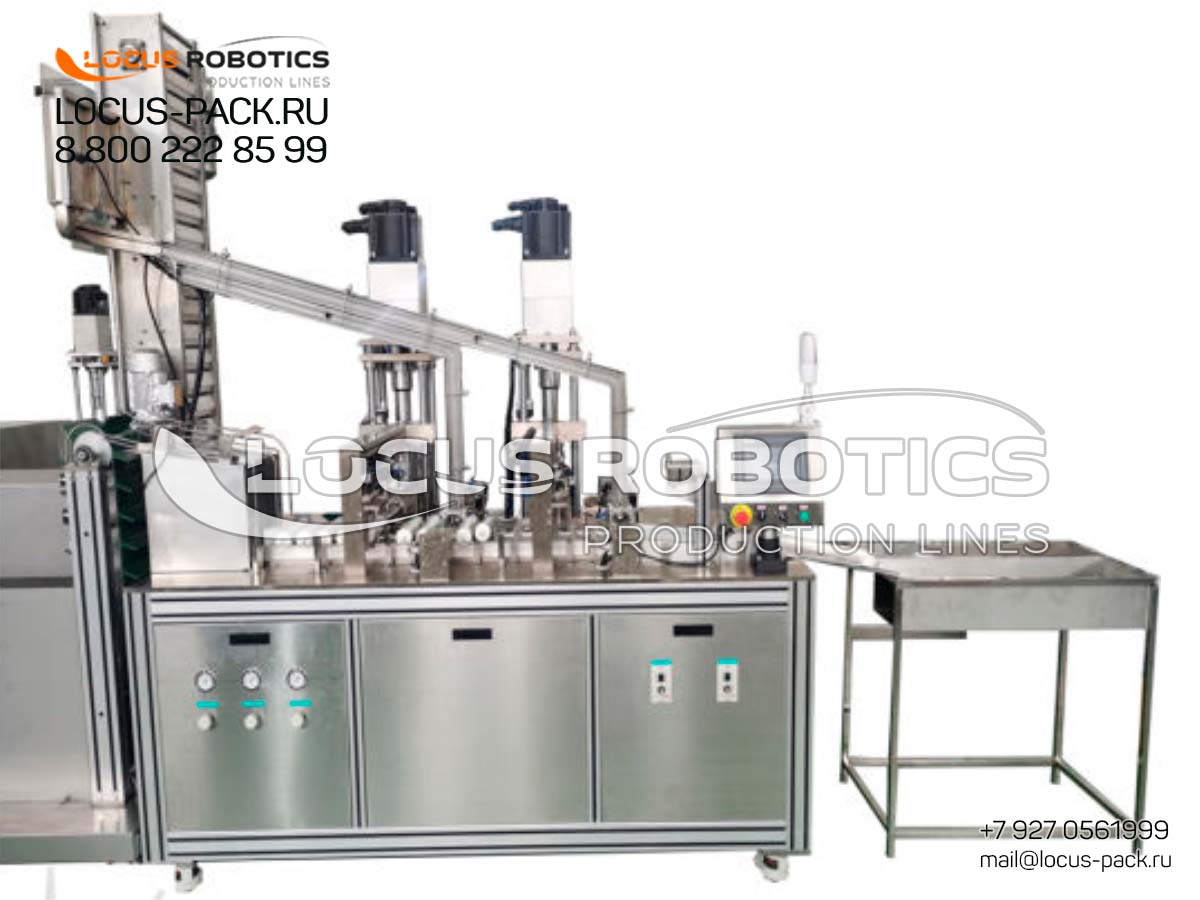

TBC-30 Automatic Dual-Nozzle Monoblock with Tube Orienter and Servo Piston Dispensers.

Automatic cartridge filling and capping machine linear type.

Dual nozzle cartridge filling system for industrial chemicals.

High-Speed Precision Filling for Tube Packaging
The TBC-30 automatic dual-nozzle monoblock combines advanced servo piston dispensers with an automatic tube orienter to deliver unmatched efficiency and accuracy. Designed for cosmetic, pharmaceutical, and food products, it handles a wide range of viscous formulations, including creams, gels, ointments, and pastes. The dual-nozzle design allows for simultaneous filling, doubling productivity while maintaining consistent quality. This machine is perfect for high-volume production lines seeking reliability and precision.

Key Features:

• ✅ Dual Servo Piston Dispensers: Ensure precise filling with adjustable volumes.

• ✅ Automatic Tube Orienter: Guarantees correct tube positioning for error-free operation.

• ✅ High-Speed Operation: Capable of up to 30 tubes per minute.

• ✅ Hygienic Design: SS304/316 stainless steel construction, compliant with GMP standards.

• ✅ User-Friendly Interface: Easy-to-use controls for quick changeover and minimal downtime.

Advanced Features for Enhanced Performance

• Dual Servo Piston Dispensers: Provide precise volumetric control with ±0.5% accuracy, reducing product waste and ensuring consistency.

• Automatic Tube Orienter: Ensures tubes are correctly positioned before filling, minimizing errors and maximizing efficiency.

• High-Speed Operation: Achieves speeds of up to 30 tubes per minute, ideal for large-scale production.

• Servo-Driven Technology: Allows for customizable filling volumes and easy adjustment through an intuitive interface.

• Hygienic Construction: Made from SS304/316 stainless steel, meeting industry standards for cleanliness and durability.

• User-Friendly Controls: Simplified interface for easy operation, reducing training time and downtime.

Our linear-type monoblock is specifically engineered for high-speed automatic filling and capping of industrial cartridges. Equipped with dual filling nozzles, automatic cartridge orienters, cap orienters, and automatic capping heads, this system achieves production speeds exceeding 30 cartridges per minute. Ideal for packaging sealants, construction chemicals, lubricants (lithol, solidol), and various technical chemicals, this machine features precision servo-driven dispensers and robust SS304/316 construction for demanding industrial environments.

Key Features:

• Dual filling nozzles for high-speed operation

• Automatic cartridge and cap orientation systems

• Precision servo-driven filling system

• Automatic capping heads with torque control

• SS304/316 stainless steel construction

• Handles viscosities up to 500,000 cP

• PLC control with touchscreen interface

• Quick changeover between cartridge sizes

Detailed Technical Description:

Advanced Cartridge Packaging Solution for Industrial Applications
This linear monoblock represents the latest in cartridge packaging technology, specifically designed for handling challenging industrial products. The machine’s robust construction and precision components ensure reliable operation with even the most viscous materials, while the automatic orientation systems guarantee perfect alignment of cartridges and caps throughout the packaging process.

Technical Specifications

Key Features & Benefits

• High-Speed Operation: Dual nozzles and automatic systems enable production rates exceeding 30 CPM

• Precision Filling: Servo-driven pistons ensure accurate fill volumes with ±1% accuracy

• Automatic Orientation: Intelligent systems ensure proper alignment of cartridges and caps

• Versatile Application: Handles various industrial products from sealants to lubricants

• Robust Construction: Stainless steel build withstands harsh chemical environments

• Easy Operation: User-friendly interface minimizes training requirements

• Quick Changeover: Modular design allows fast adaptation to different cartridge sizes

Industries Served

• Construction Chemicals: Sealants, adhesives, mortars

• Lubricants: Lithol, solidol, industrial greases

• Technical Chemicals: Specialty compounds, maintenance products

• Industrial Packaging: Contract packaging services

Why Choose the TBC-30 Automatic Monoblock?

• High Efficiency: Dual-nozzle design and automatic orienter maximize productivity.

• Precision Filling: Servo piston dispensers ensure accurate volumes, reducing waste.

• Versatility: Suitable for a wide range of products and tube types.

• Easy Maintenance: Designed for quick cleaning and minimal downtime.

• Global Compliance: Built to perform reliably in diverse climates and markets.

Automatic cap orienting and capping system.

Linear monoblock for technical chemical packaging.

TBC-30 Automatic Dual-Nozzle Tube Filling Machine with Tube Orienter.

TBC-30 Automatic Dual-Nozzle Monoblock with Tube Orienter and Servo Piston Dispensers.
