Semi-Automatic Gravimetric Filling and Capping Station in ATEX/IECEx Certified Explosion-Proof (Ex) Execution for Safe Packaging of Flammable Liquids (FL), Solvents, Paints, and Industrial Chemicals into Buckets and Pails

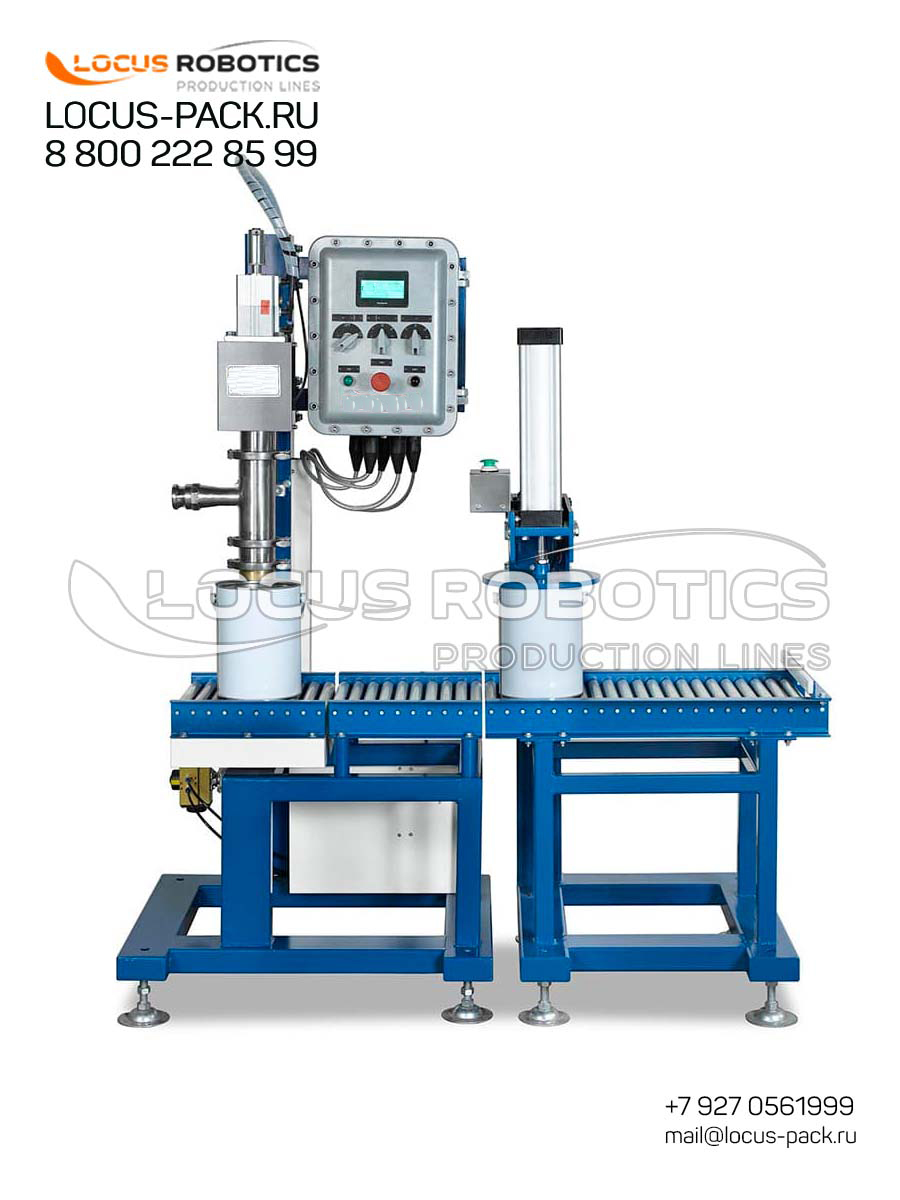

LFSG-500 Explosion-Proof Station: The Compliance-Critical Solution for Hazardous Area Packaging Operations

In industrial sectors handling flammable liquids, powders, or vapors, the packaging area often represents one of the highest concentration points for explosive atmospheres. Using standard, uncertified equipment in such zones is not merely a regulatory violation; it is an unacceptable risk to human life, capital assets, and business continuity. The LFSG-500 Semi-Automatic Station in Explosion-Proof Execution is engineered as a fundamental risk mitigation tool, transforming a high-hazard operation into a controlled, compliant, and safe process. It is designed for chemical plants, paint manufacturing facilities, solvent recycling operations, and fuel additive blenders where the handling of products with low flash points is routine. By incorporating certified Ex-components into a robust, gravimetric filling platform, this station does more than package—it actively manages the ignition risk triangle (fuel, oxygen, ignition source) by eliminating the third element. This allows companies to meet the stringent mandates of safety regulations like the EU’s ATEX Directive, the IECEx International Scheme, and national standards such as NEC (NFPA 70) in North America for Class I Division 1/2 areas, thereby ensuring uninterrupted production, avoiding catastrophic fines and shutdowns, and safeguarding their workforce and reputation in high-stakes markets across the globe.

Exhaustive Technical Specifications and Explosion-Protection Architecture

• Certification & Hazardous Area Classification: The system is designed and certified for use in environments with potentially explosive atmospheres. Typical certifications include ATEX Category 2G/3G (for gas/vapor) and 2D/3D (for dust), corresponding to Zone 1, 21 (occasional hazard) or Zone 2, 22 (rare hazard). Equipment is marked with the «Ex» symbol and detailed protection codes (e.g., Ex db IIB T4 Gb, Ex tb IIIC T135°C Db).

• Core Design & Safety Philosophy: The entire station is built on the principles of explosion protection by containment (flameproof enclosure ‘d’), prevention of effective sparks (intrinsic safety ‘i’), and isolation (pressurization ‘p’). The right-hand execution configuration optimizes operator workflow while maintaining safe distances and grounding points.

• Weighing & Dosing System: Features a single, high-accuracy gravimetric weighing platform with a certified load cell. The weighing electronics are housed in an Ex-rated junction box or are intrinsically safe (Ex i), ensuring that the measurement signals cannot generate incendiary sparks.

• Electrical & Control System: All electrical components are housed within certified Ex-d or Ex-e (increased safety) enclosures. The Programmable Logic Controller (PLC), Touch Screen HMI, motor starters, solenoids, and sensors are either located in a separate, safe-area control panel connected via intrinsic safety barriers or are themselves certified for the zone. Conduit and cable glands are also Ex-certified.

• Pneumatic System: The pneumatic capping head and all actuating cylinders use compressed air as a power source, which is inherently safer in flammable environments. Solenoid valves controlling air flow are Ex-certified (often Ex m — encapsulation or Ex i). Exhaust ports may be fitted with flame arrestors.

• Mechanical & Construction Details: The chassis is constructed from grounded, anti-static materials. All product contact parts are typically AISI 316L stainless steel for chemical resistance. The powered roller conveyor is driven by an Ex-certified gear motor. The dispensing nozzle and piping are designed to minimize static charge generation.

• Dispensing System: Utilizes a positive displacement pump (e.g., diaphragm, piston) suitable for viscous flammable liquids. The pump motor is Ex-certified (often Ex d or Ex e). The system may include grounded filling nozzles and nitrogen inerting/purging connections for highly sensitive solvents.

Comprehensive Analysis of Safety Advantages and Regulatory Benefits

1. Elimination of Ignition Sources in Hazardous Zones: This is the primary and non-negotiable benefit. By using components certified for the specific explosive atmosphere (Gas Group IIC, Temperature Class T4, etc.), the station ensures that arcs, sparks, or hot surfaces generated during normal operation or expected faults cannot ignite the surrounding flammable mixture of vapors, gases, or dusts. This fundamental engineering control is the cornerstone of process safety management (PSM) in the chemical industry.

2. Global Regulatory Compliance and Market Access: Possessing an ATEX or IECEx certificate is often a legal requirement to operate in the European Economic Area and is a globally recognized passport for exporting equipment to most international markets with stringent safety codes. Using this station demonstrates due diligence to insurance providers and regulatory bodies (OSHA, HSE, etc.), simplifying audits, reducing liability, and preventing costly production stoppages or import rejections.

3. Enhanced Personnel Safety and Risk Mitigation Culture: Deploying certified equipment in hazardous areas profoundly protects operators and maintenance technicians. It mitigates the risk of catastrophic incidents, fostering a stronger safety culture within the organization. This proactive investment in safety technology reduces the potential for human error-related accidents and aligns with the highest international standards for occupational health and safety (ISO 45001).

4. Precision Dosing with Safety-Critical Materials: The gravimetric weighing system provides exact control over the fill quantity of expensive, regulated, or hazardous solvents. This precision prevents overfilling, which could lead to dangerous spillage and vapor release, and ensures compliance with strict weights and measures regulations for traded commodities, all while operating within the safe Ex envelope.

5. Robust Sealing to Prevent Post-Packaging Hazards: A secure seal is not just about product quality; for flammable liquids, it is a containment imperative. The pneumatic capping head ensures a leak-proof seal on buckets, preventing the escape of volatile vapors during warehousing and transportation. This eliminates secondary explosion risks in storage areas and ensures the product reaches the end-user in a safe, intact condition.

Target Industries and Detailed Application Portfolio for Hazardous Materials

• Paints, Coatings and Inks Industry: Solvent-based paints and lacquers, automotive refinish coatings, industrial metal coatings, printing inks, varnishes and stains, two-pack epoxy and polyurethane coatings, and paint thinners and reducers.

• Chemical Manufacturing & Processing: Organic solvents (acetone, MEK, toluene, xylene), monomers for polymer production, fuel additives and octane boosters, cleaning and degreasing agents, extraction chemicals, and reactive intermediates.

• Adhesives & Sealants: Solvent-based contact cements, rubber-based adhesives, vinyl adhesives, certain polyurethane and silicone sealants containing flammable propellants or solvents.

• Pharmaceutical & Cosmetics (where applicable): Extraction processes using ethanol or other flammable solvents, perfumes and fragrances with high alcohol content, and certain aerosol propellant filling operations (requires specific additional certifications).

• Fuel & Energy Sector: Additive packaging for gasoline and diesel, aviation fuel handling, specialty lubricants and penetrating oils.

LFSG-500 Explosion-Proof Station vs. Standard Industrial Filling Station
