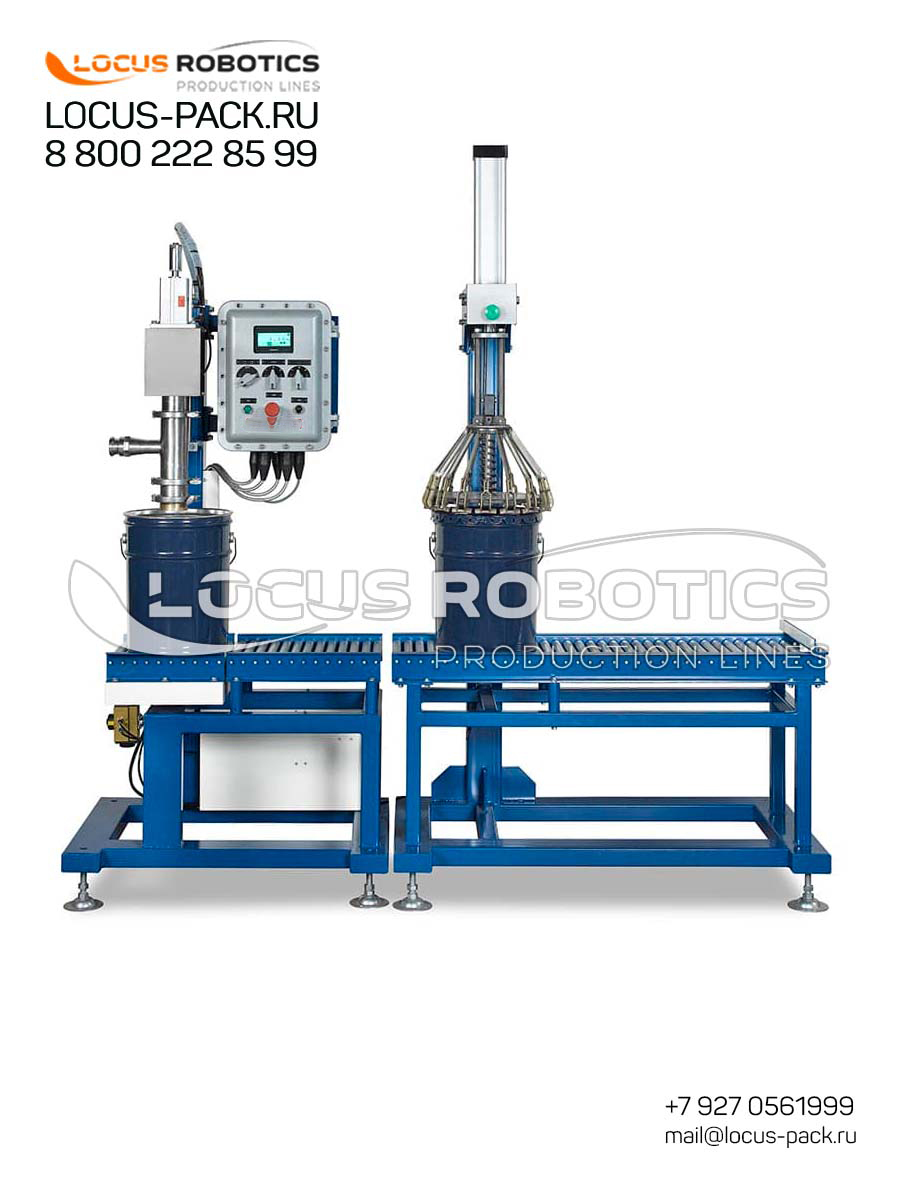

Semi-Automatic Gravimetric (Weighing-Type) Filling and Sealing Station in ATEX/IECEx Explosion-Proof (EX) Execution, Equipped with a Crown Cap Crimping Head for Hermetically Sealing Large Metal Pails and Drums with Flammable Liquids, Solvents, Paints, and Petroleum Products

LFSG-500 EX with Crown Sealer: The Compliance-Critical and Security-Focused Solution for Hazardous Liquid Packaging in Metal Containers

In sectors where the consequences of a packaging failure can be catastrophic—such as in chemical processing, paint manufacturing, or fuel additive blending—the choice of packaging equipment is a direct decision about risk management, regulatory adherence, and product stewardship. The LFSG-500 Semi-Automatic Explosion-Proof Station with Crown Cap Sealer is engineered as the definitive solution for this high-stakes environment. It addresses two parallel and critical challenges: firstly, to operate with zero ignition risk in areas where flammable vapors or dusts may be present, and secondly, to apply a closure to metal containers that is as robust and secure as the container itself. The crown cap seal, a standard in the beverage industry for its reliability, is here applied with industrial force to metal pails, creating a permanent mechanical bond. This system is designed for facilities where product integrity during rail, ship, or long-haul road transport is non-negotiable, and where compliance with international codes for the transport of dangerous goods (such as ADR, IMO, ICAO) is mandatory. By fusing ATEX/IECEx certified safety with a hermetic sealing technology, this station empowers manufacturers to safely and confidently package their most hazardous products, ensuring they meet global safety regulations, protect their workforce and assets, and deliver their products in a condition that guarantees safety for the end-user and the public.

Exhaustive Technical Specifications and Integrated Safety-Sealing Architecture

• Certification & Hazardous Area Classification: The entire station is designed and certified for use in explosive atmospheres. It complies with ATEX Directive 2014/34/EU (Categories 2G/3G for gas, 2D/3D for dust) and/or the IECEx International Scheme, suitable for Zone 1/21 or Zone 2/22. All components bear the «Ex» marking with specific protection codes (Ex d IIB T4 Gb).

• Core Design Philosophy: Implements explosion protection principles such as flameproof enclosures (Ex d), intrinsic safety (Ex i), and increased safety (Ex e) for electrical components. The mechanical design follows a right-hand linear workflow: container placement -> weighing fill -> crown cap sealing.

• Weighing & Dosing System: Features a single, high-stability weighing platform with a certified, hermetically sealed stainless steel load cell. The weighing electronics are housed in an Ex-d or Ex-e certified control box or utilize intrinsic safety barriers.

• Specialized Sealing System: Crown Cap Crimping Head: This is a pneumatic or electropneumatic seaming head specifically designed for large-diameter metal pails. It takes a pre-positioned metal crown cap and, in one or two operations, curls the cap’s skirt tightly under the flange of the pail, creating a double-seam hermetic closure. The head is adjustable for different pail diameters.

• Electrical & Control System: All motors, sensors, the PLC, and the Touch Screen HMI are housed within certified Ex enclosures or are located in a safe-area control panel connected via Ex-i barriers. Conduit, cable glands, and junction boxes are all Ex-certified.

• Pneumatic & Mechanical Systems: The crown seamer and any actuating cylinders are powered by compressed air. Solenoid valves are Ex-certified (Ex m or Ex i). The station includes a powered roller conveyor driven by an Ex-certified gear motor to move heavy metal pails.

• Dispensing System: Utilizes a positive displacement pump (diaphragm) suitable for flammable liquids. The pump motor is Ex-certified. The system may include grounded filling nozzles and optional nitrogen inerting/purging ports for highly volatile solvents.

• Materials of Construction: The frame is constructed from grounded, anti-static materials. All product contact parts (pump, valve, nozzle) are AISI 316L stainless steel. The seaming head components are made from hardened tool steel.

Comprehensive Analysis of Safety, Security, and Operational Advantages

1. Dual-Layer Hazard Mitigation: This station provides a comprehensive risk management strategy. First, the ATEX/IECEx certification systematically removes ignition sources, protecting against primary explosions within the packaging area. Second, the hermetic crown cap seal prevents any leakage of vapors or liquids, mitigating secondary hazards during storage and transport, aligning perfectly with Seveso III Directive and COMAH regulations for major accident prevention.

2. Unmatched Seal Integrity for Dangerous Goods Transport: The crown crimp seal is mechanically superior to most other closure types for metal containers. It creates a permanent, gas-tight seam that withstands internal pressure, vibration, and impact far better than threaded or press-fit lids. This is a critical factor for compliance with UN packaging standards for the transportation of dangerous goods, reducing liability and rejection risks in logistics.

3. Global Regulatory Compliance and Market Access Facilitator: Possessing the correct ATEX certification is a legal requirement in the EU and a de facto global passport. Similarly, using a recognized secure closure like a crown cap simplifies approvals from logistics providers and regulatory bodies for shipping hazardous materials. This station is an enabler for seamless export to strictly regulated markets worldwide.

4. Precision Dosing Ensures Compliance and Cost Control: The gravimetric filling system provides exact control over the fill quantity of expensive or regulated flammable solvents. This prevents overfilling (a safety risk) and underfilling (a commercial compliance issue), ensuring adherence to strict trade measurement laws (Weights and Measures Acts) while optimizing raw material usage.

5. Robust and Reliable for Demanding Industrial Duty: Built specifically for harsh chemical environments and heavy metal containers, every component is heavy-duty. The combination of stainless steel wetted parts, Ex-rated durability, and industrial seaming technology results in exceptionally high uptime, low maintenance, and a long operational lifespan, providing an excellent return on investment for high-risk packaging lines.

Target Industries and Detailed Product Application Portfolio

• Chemical Manufacturing & Processing: Organic solvents and diluents (acetone, MEK, toluene), monomers (styrene, vinyl acetate), paint strippers and heavy-duty cleaners, fuel additives and octane boosters, reactive chemical intermediates.

• Paints, Coatings and Inks Industry: Solvent-based paints, lacquers, and enamels, automotive refinish coatings, industrial metal primers and finishes, marine coatings, printing inks, varnishes, and stains.

• Petrochemical & Fuel Sector: Specialty lubricants and penetrating oils, aviation fluids, crude oil samples and additives, drilling mud components, bitumen and tar products.

• Adhesives & Resins: Solvent-based contact cements, two-part epoxy resin components (Part A or B), polyurethane adhesives and prepolymers.

• Pharmaceutical & Cosmetics (where applicable): High-percentage alcohol solutions, flammable extraction solvents, certain aerosol concentrate fills.
